Design with no dead space to
prevent fluid contamination!

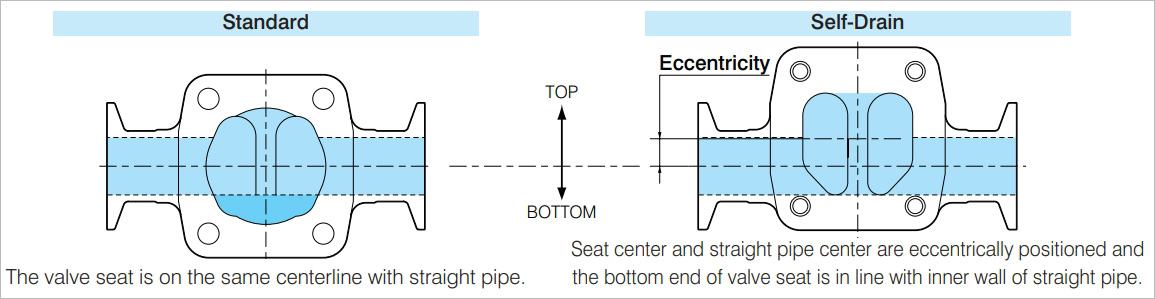

Self-drain type: Type F

Product features

1. This is a valve body that further improves effect of preventing liquid accumulation from the bio-clean diaphragm valve series.

2. By installing on horizontal piping, the valve shaft position is horizontal to eliminate liquid pools.

Valve specifications

Stainless steel body	PFA lined body

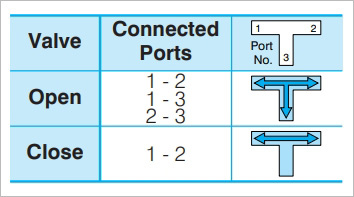

Sampling valve: Type P

Product features

1. Fluid sampling is possible without dead space (pocket or liquid pool).

2. The product can be installed directly in the piping and is compact. There is no residual fluid in the valve.

3. In addition to sampling, it can be used in a wide range of applications, including fluid separation, merging, supplying of cleaning water and sterilization steam, and the discharge.

Valve specifications

Please refer to the catalog and drawings for the details of the product and the specifications, or contact our sales representative.

Three-way valve: Type K

Product features

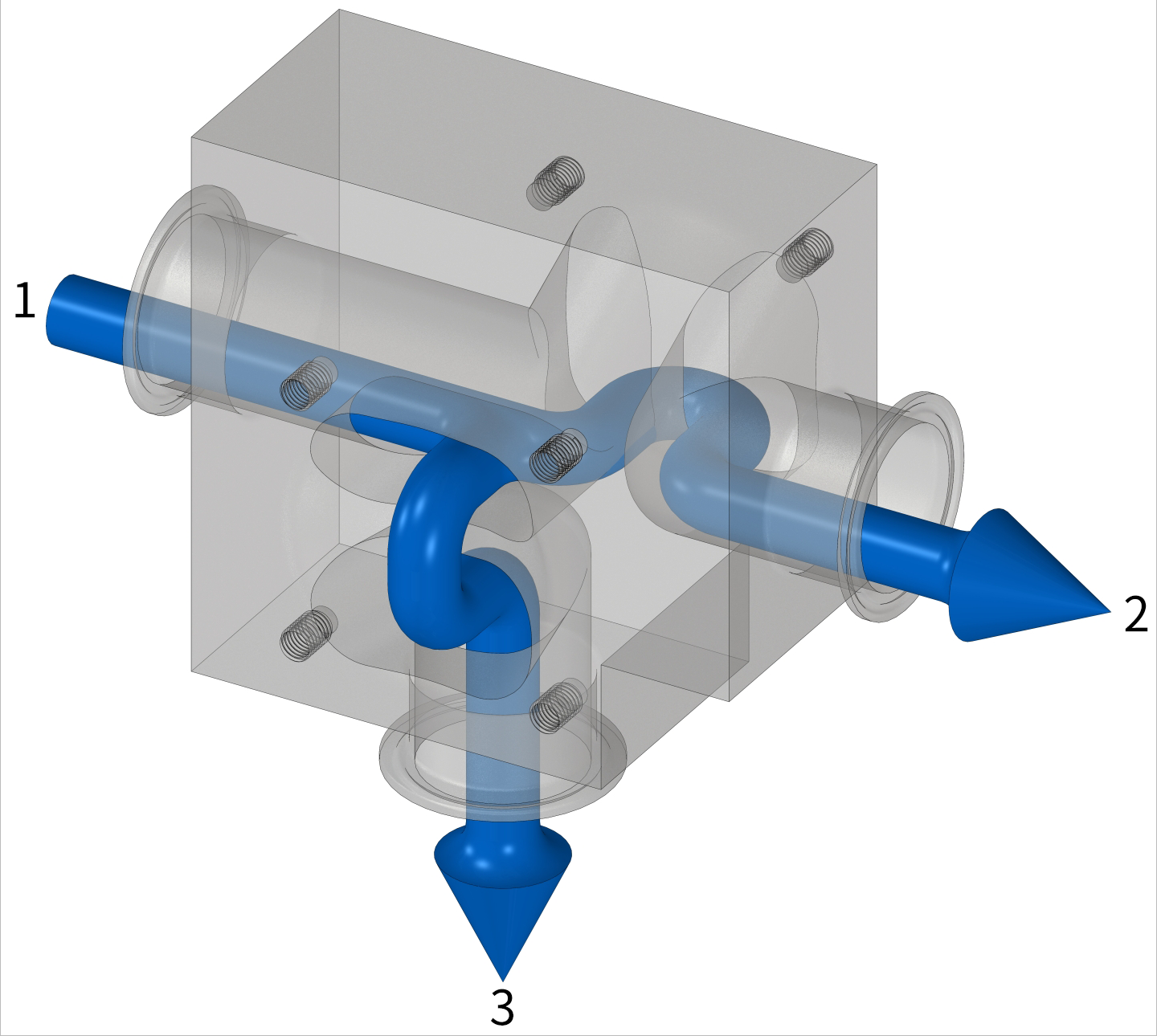

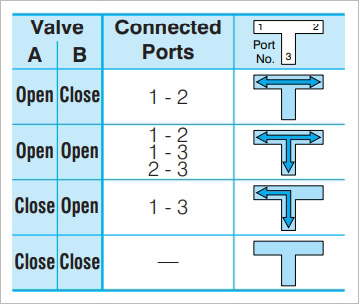

1. This is a three-way type combined valve with no dead space (pocket or liquid pools).

2. The product can be installed directly in the piping and is compact. There is no residual fluid in the valve.

3. It can be used in a wide range of applications, including fluid separation, merging, supplying of cleaning water and sterilization steam, and the discharge.

Valve specifications

Please refer to the catalog and drawings for the details of the product and the specifications, or contact our sales representative.

Tank bottom valve: Type T

Product features

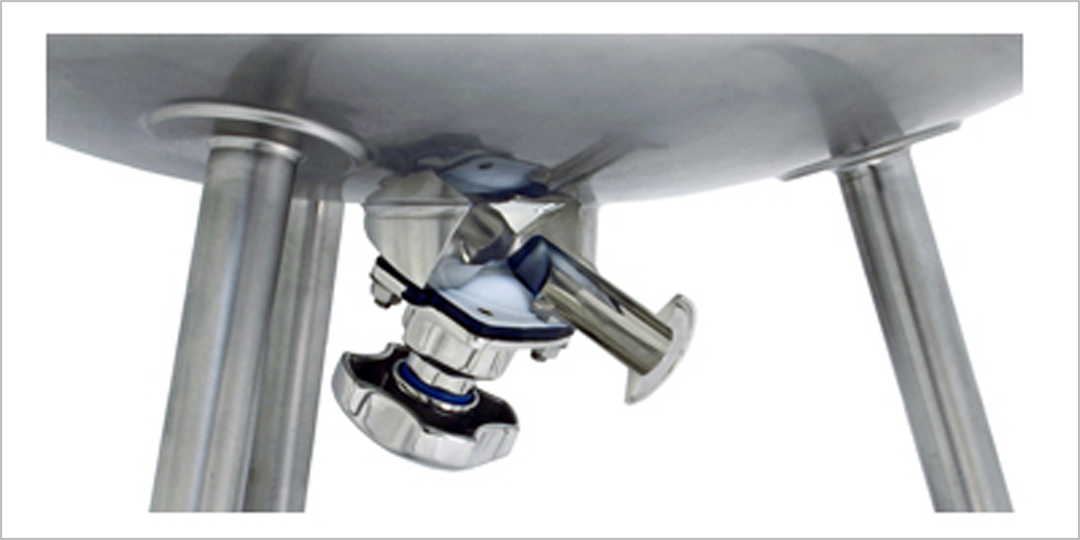

Installation image

1. It has a structure of direct welding to the bottom of the tank, providing excellent mixing efficiency.

2. There are no gland packings, stems, seats, gaskets, etc. in the wetted parts, and the tank contents are discharged smoothly with little residual since they are opened and closed only by the diaphragm. Contamination caused by valve components is prevented, and cleaning and sterilization can be easy and reliable.

3. The production range is DN15～100(4.0S). Can be used from small containers of 10L size to medium-sized tanks of 10,000L size.

4.


Valve specifications

Please refer to the catalog and drawings for the details of the product and the specifications, or contact our sales representative.
